Product type	Wireless microphone (handheld transmitter)
Brand	Sennheiser
Model	SKM 1032
Dimensions	245 × 38 mm
Weight	Approx. 250 g (battery included)
Power supply	9 V battery (IEC 6LR61) or Sennheiser BA 1032 rechargeable battery
Battery life with battery	Approx. 8 h (SKM 1032-0 with alkaline battery)
Battery life with rechargeable battery	Approx. 2 h (BA 1032 rechargeable battery)
Carrier frequencies	SKM 1032-0: 36.7/37.1/37.9 MHz; SKM 1032 VHF: 138-145 or 170-260 MHz
RF output power	SKM 1032-0: ≤ 5 mW; SKM 1032 VHF: 50 mW
Number of channels	Up to 6 (switchable)
Modulation	Wideband FM
Audio frequency response	100 - 20,000 Hz (+1/-3 dB)
Microphone	Dynamic, supercardioid polar pattern
Compander system	HiDynplus™ (Sennheiser exclusive)
Sensitivity adjustment	2 positions: HIGH and LOW (approx. 20 dB attenuation in LOW)
Mute function	MUTE switch with accidental actuation lock
Usage	Handheld or with SZU 1032 shoulder strap (optional)
Included accessories	Whip antenna A 1032, shoulder strap SZU 1032, stand mount STH 1051 (depending on version)
Cleaning the grille	Unscrew the grille, wash the foam and grille in lukewarm water, dry before reassembling
Repairability	Battery/rechargeable battery replaceable; charging contacts cleanable

Frequently Asked Questions - SKM 1032 SENNHEISER

How to change the transmission frequency of the SKM 1032?

Use the frequency switch located in the battery compartment. Each number corresponds to a frequency indicated on the type plate. Make sure the frequency matches that of the receiver. Use a small screwdriver or the antenna tip to turn the switch.

What type of battery to use?

Use only 9 V alkaline-manganese batteries (IEC 6LR61). Using other batteries significantly reduces battery life.

Can I use rechargeable batteries?

Yes, Sennheiser recommends the BA 1032 rechargeable battery. Charge it in the L 1032 charger with the NT 1032 power supply. One battery can remain in the microphone while another is charging.

How to clean the microphone grille?

Unscrew the grille, remove the protective foam. Wash both parts in lukewarm water, then dry completely before reassembling. Do not use chemicals.

What to do if the sound is distorted?

Check the position of the sensitivity switch. If set to HIGH, switch to LOW to avoid overmodulation. Also ensure that the receiver is set to the same channel and that the HiDynplus system is activated if present.

How to mute without turning off the transmitter?

Use the MUTE switch (OFF position). To prevent accidental actuation, you can lock the switch by sliding it sideways.

Does the SKM 1032 work with all receivers?

It works with any frequency-compatible receiver. However, to benefit from the HiDynplus™ compander system, the receiver must also be equipped with it.

How to wear the microphone hands-free?

Attach the SZU 1032 shoulder strap (included accessory) to the microphone. Wear it on your chest. In this case, set the sensitivity to HIGH to compensate for the mouth-to-microphone distance.

What accessories are available for the SKM 1032?

Optional accessories: BA 1032 rechargeable battery, L 1032 charger, MZW 1032 windscreen, SZU 1032 shoulder strap, STH 1051 stand mount, short helical antenna.

Why is there no signal even though the transmitter is on?

Check that the battery is correctly inserted and not discharged. Make sure the transmission frequency matches that of the receiver. Also check that the receiver is on and set to the correct channel.

USER MANUAL SKM 1032 SENNHEISER

Instructions for use 12

Notice d'emploi 20

36.64/36.72/37.04/37.16/37.82/37.98 MHz

FM, Schmalband

5 MHz

± 8kHz / ± 15kHz

IEC 6LR61,9V,Alkaline

IEC 6LR61, 9 V, Alkaline

Thank you for choosing Sennheiser!

You have made an excellent choice. This product will give you reliable operation over many years. All of Sennheiser's professional expertise and more than fifty years of experience have gone into the creation of this state-of-the-art product.

Please take a few moments to read these instructions carefully. We want you to enjoy your new radiomicrophone quickly and to the full.

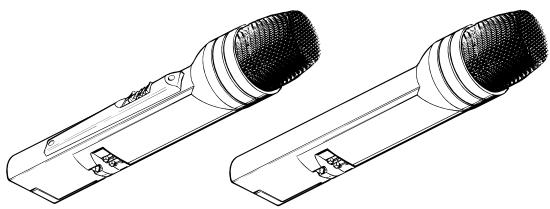

Brief description

SKM 1030 and SKM 1032 are radiomicrophones for use with wireless transmission systems.

They are suitable for a wide range of applications. The SKM 1030 is chiefly used in radio tour-guide systems, the SKM 1032 is often employed in theaters or as a musician's microphone. Both transmitters can be hand-held or worn around the neck with the SZU 1032 Lavaier clip (available as an accessory). Further useful accessories are the BA 1032 fast charging accupacks and the corresponding L 1032 charger.

Special characteristics

high reliability and long operating time in rechargeable battery operation, too
easy handling and operation
- channel selection
- optional use of the quick charge high-capacity rechargeable battery BA 1032
- clickless ON/OFF switch for the microphone signal

Models

SKM 1032-0

wireless microphone; FM-wideband; 8m-band; Transmitter output power ≤ 30mW switchable to 3 frequencies: 36.7MHz 37.1MHz 37.9MHz Sennheiser noise suppression system HiDynplusTM.

SKM 1032 VHF

wireless microphone; FM-wideband; VHF-range
Transmitter output power ≤ 50mW frequency range: 138-145 MHz or 170-260 MHz; switchable to 6 frequencies
Sennheiser noise suppression system HiDynplusTM

SKM 1030-6

wireless microphone; FM-narrowband; 8m-band; max. radiated power 5mW ; switchable to 6 frequencies; preferred frequencies between 36.64 and 37.98 MHz; clickless ON/OFF switch for the microphone signal.

SKM 1030-7

wireless microphone, identical to the SKM 1030-6. higher radiated power: 10mW

SKM 1030-7 BU

wireless microphone, identical to the SKM 1030-7. Transmitter output power ≤ 100mW Music and speech information can be broken in via an additional integrated 2.5mm TB-socket.

HINT

Apart from these standard models wireless microphones of the SKM 1030 line and of the SKM 1032 line are also available for the operation at special frequencies. These transmitters are marked by the additional designation ...SF.

How to insert the battery

Insert the battery as demonstrated in the figure.

Pay attention to the polarity!
Use only alkali-manganese-batteries!

If not the given operating time (see technical data) will drastically be reduced.

For regular operation use quick charge rechargeable batteries BA 1032 instead of batteries.

Rechargeable battery BA 1032, charge with the battery charger L 1032

The rechargeable batteries BA 1032 are recharged with the battery charger L 1032 and an appropriate plug transformer NT 1032. One rechargeable battery can remain in the microphone during the recharge, a second one can be recharged in the appropriate battery compartment of the battery charger. L 1032 and NT 1032 are supplied as accessories.

The battery charger L 1032 and the SKM 1030 / SKM 1032 are connected via the charging-contact (see figure on next page).

Please take care that these contacts are clean, i.e.metallic-bright.

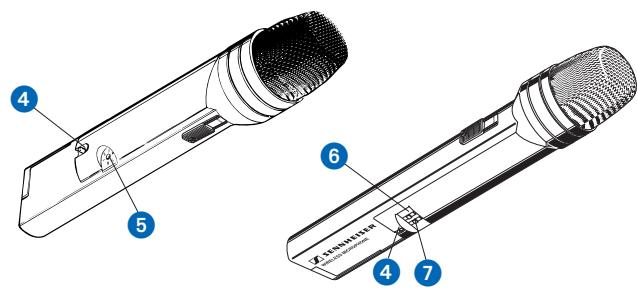

How to adjust the transmitter frequency

Adjust the desired transmitter frequency with the switch ⑤. Each number on the switch corresponds to a transmitter frequency. You will find the exact frequency on the type plate in the battery compartment.

Take care that the transmitter frequency and the received frequency selected at the receiver do correspond.
A small screw driver (breadth approx. 2mm ) or the end of the wire antenna which is shaped like a small blade is suitable tools for the selection.

How to switch on / how to select sensitivity

The ON/OFF-switch 6 and the selector switch 7 are positioned in a cavity on the bottom of the housing.
The ON/OFF-switch which is used more frequently is positioned slightly above the selector switch.

After having switched on the transmitter you must wait approx. 2 seconds as the transmitter requires this time for adjusting to the chosen frequency. (PLL-rest.).

The AF signal is attenuated if the selector switch for the sensitivity ⑦ is switched to "LOW". Close-miking can thereby not result in overmodulation.

Attenuation for SKM 1030: approx. 14 dB
Attenuation for SKM 1032: approx. 20 dB

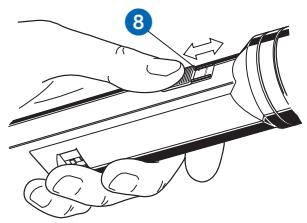

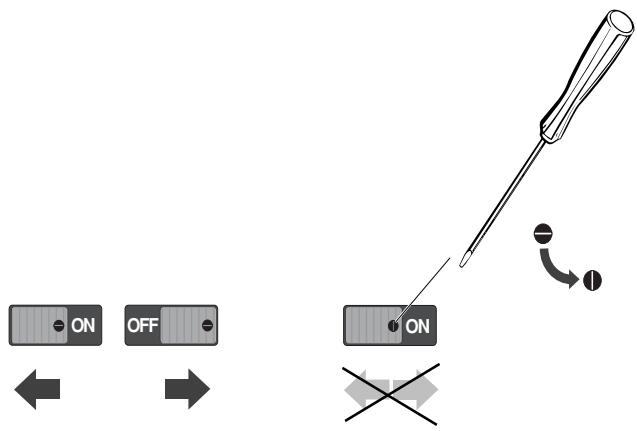

Muting the microphone

With switch ⑧ you can mute the microphone of the hand-held transmitter without switching off the transmitter itself. This avoids hissing noise in the receiver. The "ON" and "OFF" positions are clearly marked on the switch.

Switch ⑧ can be locked in the ON position to avoid accidental switching (note the position of the screw head):

Replacing the Antenna

The antenna of the SKM 1030 / SKM 1032 hand-held transmitter can easily be replaced. It is simply screwed to socket 9.

In exceptional cases the transmitter can also be operated without the antenna. Parts of the electronic circuit and the battery then act as an antenna. However, the transmitter's range is greatly reduced.
The SKM 1030 VHF works with an integral antenna, there is no socket for an external antenna.

Cleaning the Sound Inlet Basket

For cleaning, unscrew the sound inlet basket. Rinse the foam protection and teh with clear water. Dry both inlet basket and foam protection with a hairdryer.
Place the inlet basket and the foam protection back on the transmitter only if they are completely dry!

Noise Suppression System HiDynplusTM (only for SKM 1032)

The SKM 1032 hand-held transmitter is equipped with the Sennheiser noise reduction system HiDynplus™. Optimum operation of the radiomicrophone requires that the corresponding receiver is also equipped with HiDyn plus™. If that is not the case, the dynamic range is drastically reduced and the transmission sounds muffled.

How to carry / fix the wireless microphone

If the microphone is hand-held the sensitivity should be switched to "LOW". For outdoor recordings and close-miking the windshield MZW 1032 should be placed on the microphone to reduce popnoise and windnoise.
The carrying sling arrangement SZU 1032 is used if the SKM 1030 / SKM 1032 is to be carried before the breast. It is fixed and put on according to the figure. The selector switch for the sensitivity is switched to „HIGH". For guided tours in factories it is not advisable to use the SKM 1030 as a Lavalier microphone, as distance between the mouth and the microphone would be too great. Ambient noise would drown out the spoken information. In addition, the transmitter's output power is considerably reduced if the antenna is close to the body.

Hints for the correction of faults

Fault

No function

Acoustic feedback for SKM 1032

No transmission though transmitter is switched on

Distortions

Cause

flat or weak battery/rechargeable battery wrong polarity of battery/rechargeable battery
receiver may not be equipped with HiDynplus

transmitter frequency may not correspond to the frequency of the receiver
selector switch for the sensitivity may be switched to "HIGH", sensitivity is too high!

Technical data

Frequency synthesizing

Number of channels /channel grid

Radiated power

Carrier frequencies SKM 1030

Preferred frequencies for SKM 1030-7

Modulation

Switching band width

Nominal dev./peak dev. at 1kHz

S/N ratio (nom. dev.)

S/N voltage ratio (nom. dev.)

AF-frequency range

THD at 1kHz

Sound pressure for nom. dev.

Microphone

Preemphasis

THD at 1kHz

Power supply

Operating voltage range

Current consumption

Battery operating time

Operating time with

rechargeable battery BA 1032

Dimensions

Weight

Delivery includes

SKM 1030-6 / SKM 1030-7

PLL (phase-lock-loop)-synthesizer

max. 6 channels

SKM 1030-6: ≤ 5 mW

SKM 1030-7: ≤ 10 mW

6 frequencies in the range from 30-45 MHz

36.64/36.72/37.04/37.16/37.82/37.98 MHz

FM, narrowband

5 MHz

± 8kHz / ± 15kHz

68 dB (A) as per DIN 45412 at 1kHz

58 dB as per CCIR, DIN 45405

80-12,000 Hz +1/-3 dB

< 0.5%

Position "HIGH": 91 dB spl

Position _· ,·^ 105 dB spl

Dynamic, supercardioid pick-up-pattern

150 μs

< 0.5% for nom. dev.

IEC 6LR61, 9V alkaline or

Sennheiser rechargeable battery BA 1032

6.5 -9 V

approx. 65mA

approx. 6 h

approx. 1.5h

245× 38mm

approx. 250g (battery included)

1 hand-held transmitter SKM 1030

1 windshield MTW 1032

1 tuned antenna A 1032

Specific data for SKM 1032 BU

Additional AF-input

• 16dB_U (120mV) at 10k 2.5mm

miniphone plug (mono) unbalanced, for

connection of a high-level sound source

(e.g. recording tape)

Subject to alterations

Technical data

Frequency synthesizing

Number of channels /channel grid

Transmitter output power
SKM 1032-0

Transmitter output power SKM 1032-UHF

Carrier frequencies SKM 1032-0

Carrier frequencies SKM 1032 VHF

Modulation

Switching band width SKM 1032-0

Switching band width SKM 1032-VHF

Nominal dev./peak dev. at 1kHz S/N ratio (nom. dev.)

S/N voltage ratio (nom. dev.)

AF-frequency range

Noise suppression system

Sound pressure for nom. dev.

Microphone

Preemphasis

THD at 1kHz

Power supply

Operating voltage range

Current consumption

Battery operating time

Operating time with rechargeable battery BA 1032

Dimensions

Weight

Delivery includes (SKM 1032)

Delivery includes (SKM 1032-VHF)

SKM 1032-0 / SKM 1032-VHF

PLL (phase-lock-loop)-synthesizer

max. 6 channels

≤ 30 ~mW

≤ 50 mW^TM

36.7 MHz, 37.1 MHz, 37.9 MHz or

6 frequencies in the range from 30-45 MHz

6 frequencies in the range from 138-145 MHz or from 170-260 MHz

FM, wideband

SKM 1032-0:3 MHz

SKM 1032-VHF: 12MHz

approx. 8% of the carrier frequency

± 40kHz / ± 56kHz with HiDynplus

114 dB (A) as per DIN 45412 at 1kHz

102 dB as per CCIR, DIN 45405

100-20,000 Hz +1/-3 dB

Sennheiser HiDyn plusTM

Position ,HIGH: 105 dB spl

Position ,LOW: 125 dB spl

Dynamic, supercardioid pick-up-pattern 150~ s

< 0.5% for nom. dev.

IEC 6LR61, 9V alkaline or

Sennheiser rechargeable battery BA 1032

6.5 -9 V

approx. 50mA

approx. 8 h

approx. 2h

245 × 38 ~mm

approx. 250g (battery included)

1 hand-held transmitter SKM 1032-0

1 mounting device SZU 1032

1 quick-release clamp STH 1051

1 tuned antenna A 1032

1 hand-held transmitter SKM 1032-VHF

1 mounting device SZU 1032

1 quick-release clamp STH 1051

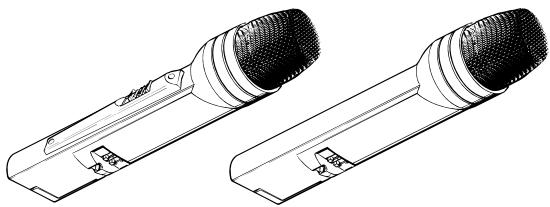

SKM 1030
SKM 1032

You'veaefaitlebonchoix！

SKM 1030-6/SMK 1030-7

36,64/36,72/37.04/37.16/37.82/37.98 MHz

FM, bande etroite

5 MHz

± 8kHz / ± 15kHz

position "HIGH": 91 dB spl

position _·^ 105 dB spl

Furniture SKM 1032-VHF

SKM 1032-0/SMK 1032-VHF

Sousreservedemodifications.

SKM 1030
SKM 1032

36.64/36.72/37.04/37.16/37.82/37.98 MHz

MF, banda stretta

5 MHz

± 8kHz / ± 15kHz di punta con 1kHz

36.64/36.72/37.04/37.16/37.82/37.98 MHz

FM, banda estrecha

5 MHz

± 8kHz / ± 15kHz ,pico a 1kHz

36.7 MHz, 37.1 MHz, 37.9 MHz o

SKM 1030-6/SMK 1030-7

PLL (Phase-Lock-Loop)-synthesiser

max. 6 kanalen

SKM 1030-6: ≤ 5 mW

SKM 1030-7: ≤ 10mW

6 frequencies in het bereik 30 - 45MHz

36.64/36.72/37.04/37.16/37.82/37.98 MHz

FM. smalband

5 MHz

± 8kHz / ± 15kHz

IEC 6LR61, 9V, alkaline

of batterij Sennheiser BA 1032

6.5Vtot9V

ca. 65mA

ca. 6 h

ca. 1,5h

245× 38mm

ca. 250g incl.batterij

1 handzender SKM 1030

1 werpantenne A 1032

IEC 6LR61, 9V, alkaline of

batterij Sennheiser BA 1032

6.5 V tot 9 V

ca. 50mA

ca. 8 uu

ca. 2 uu

245× 38mm

ca. 250g incl. batterij

1 handzender SKM 1032-0

declare that these devices conform to the basic requirements of EEC Directive 89/336/EEC resp. R&TTE Directive 1999/5/EC.

To effect correct application of the requirements stated in the EEC Directives, the following standards were consulted:

Important: Before putting the devices into operation, please observe the respective country-specific regulations!

authorized by the German Government

#

In accordance with the R&TTE Directive 1999/S/EC of 2004.

CERTIFICATE EXPERT-OFFICN

EXPERT OPINION

The scope of this evaluation relates to the use of the certificate to only valid in conjunction with
Number of annexes:
Saarbrücken, 30.10.00
Place, Date of Issue

---

CETEC

Marking: The product shall be signed with CE, our notified body number and the Class II identifier (Alert sign as shown right below).

The scope of this evaluation features to the identified documents only. The certificate is only valid in conjunction with the following number of annexes:

Number of annexes: 1

Saarbrucken, 30.10.00 Place, Date of Issue Signed by Edin Fanz

__________

CETECOM ICT Services GmbH, Unterkörpersheimer Straße 6-10, D-2 http://www.cetecom.de

18 × 20

1

-

18 × 20

Saarbricken, 30.10.00 Place, Date of Issue

__________

CETEC

18 × 20

-

Up to date information on Sennheiser products can also be found on the Internet at "http://www.sennheiser.com".
